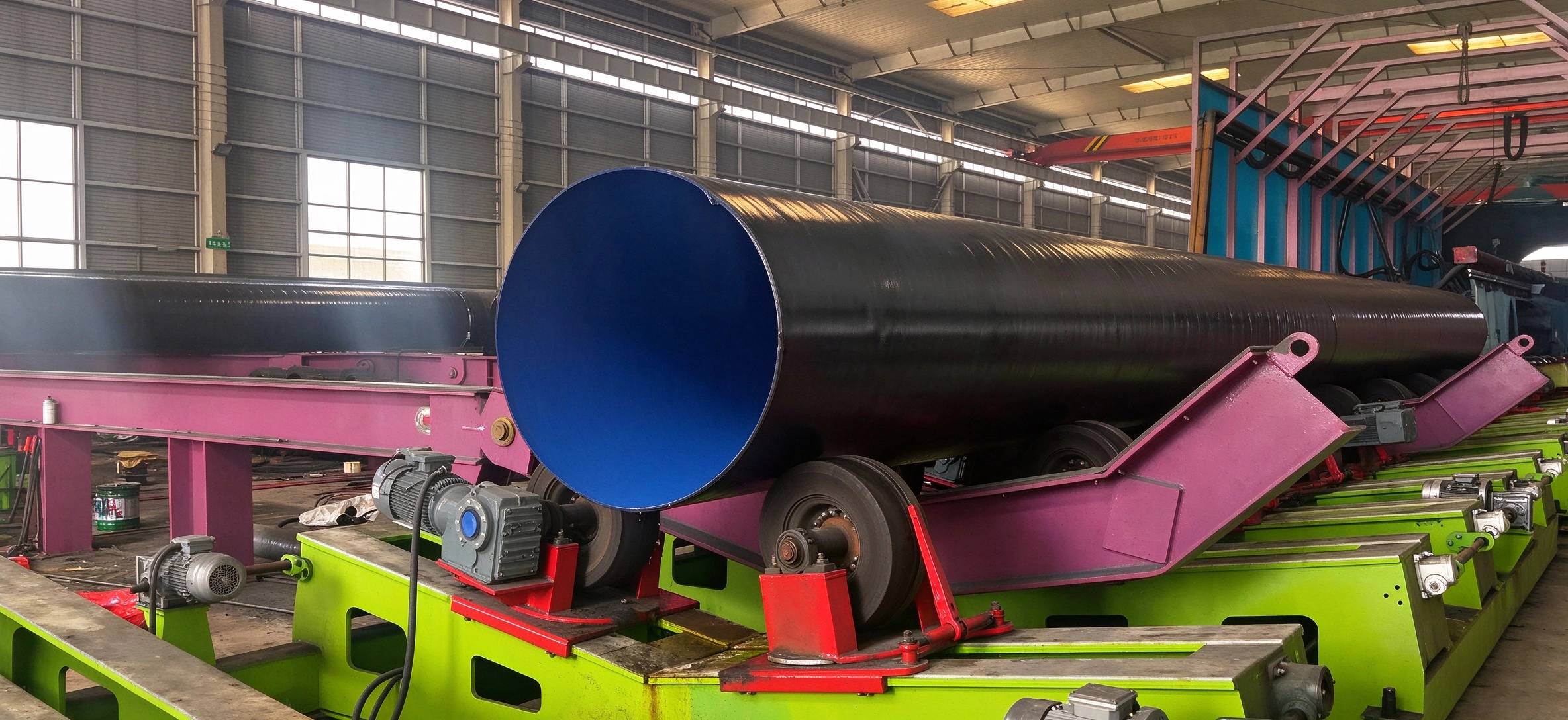

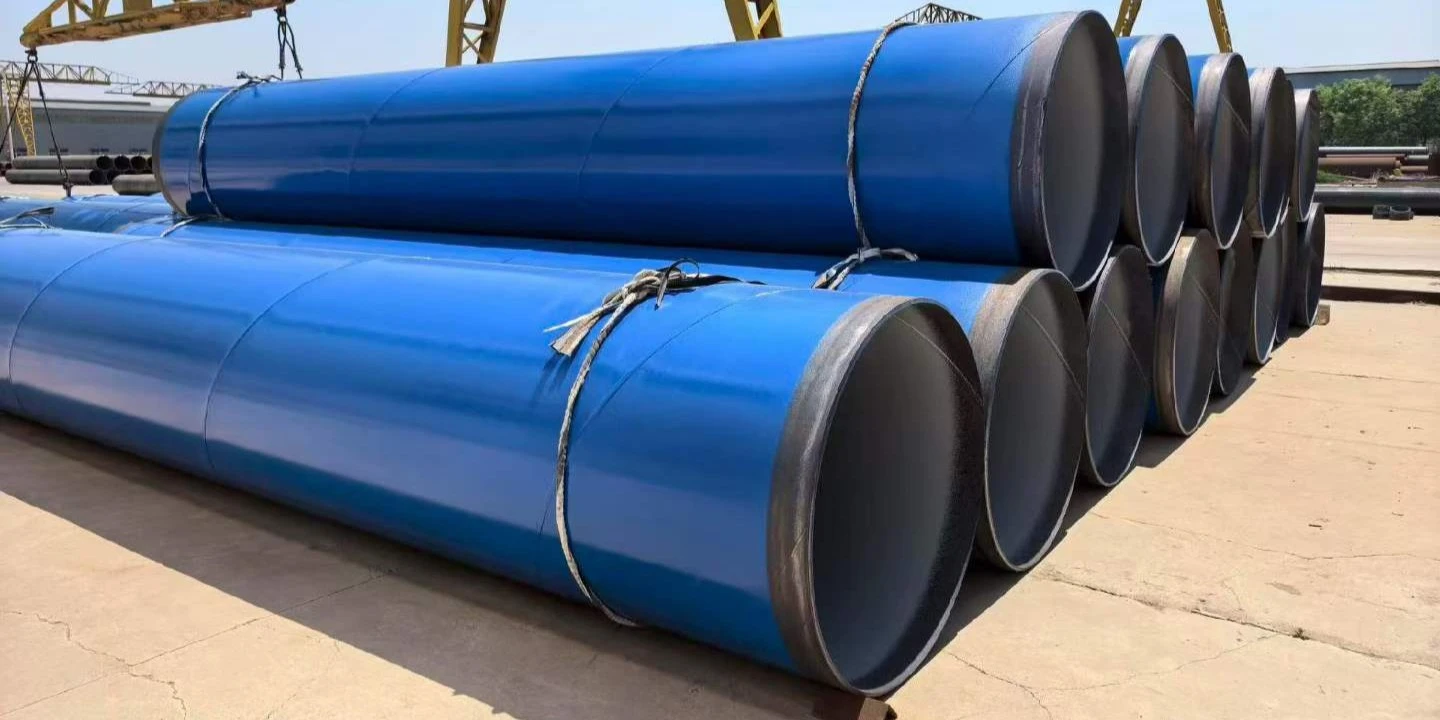

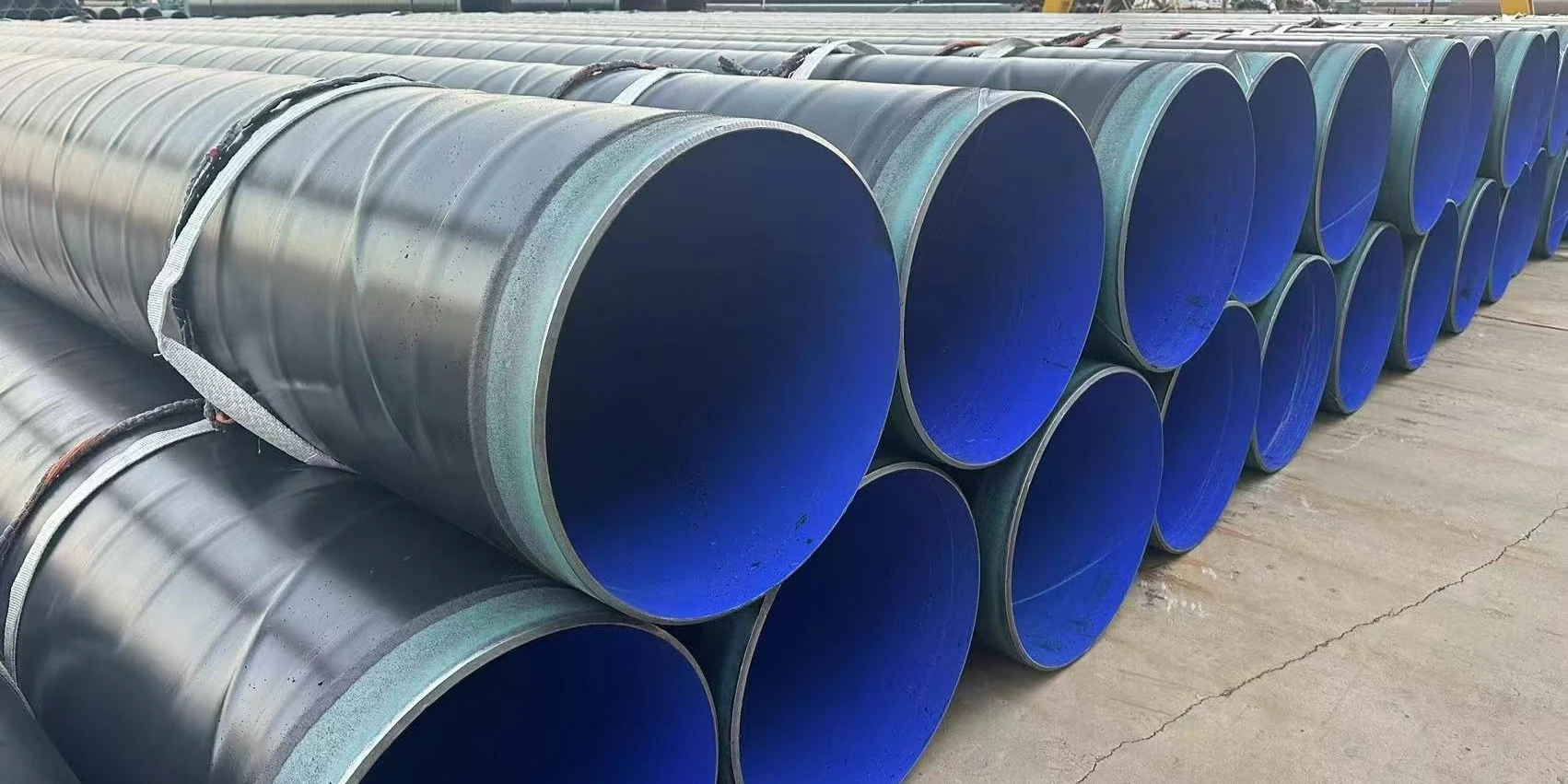

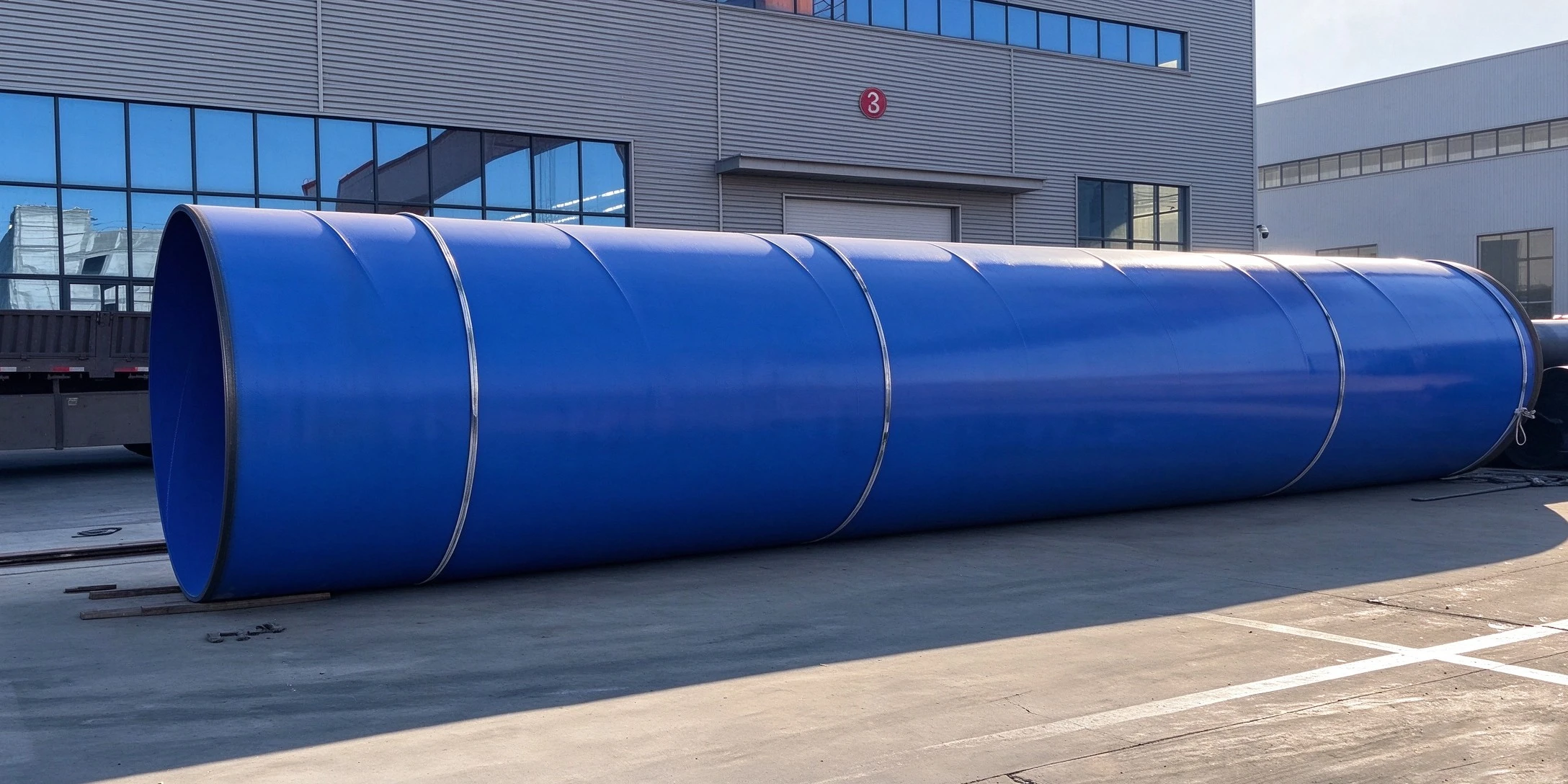

FBE Coated Carbon Steel Pipe
Manufacturing Process: Base pipe blasting, high‑temperature preheating, electrostatic epoxy powder spraying & thermal curing.
Applicable Standards: Produced to SY/T 0315, equivalent to ISO 21809‑2 pipeline coating specification.
Surface Condition: Reserved bare‑steel cutback on pipe ends for field welding.
Main Application: Single‑layer FBE for general buried gas & water pipelines; Dual‑layer FBE‑ARO for HDD directional drilling & rock‑backfill crossing.
Key Performance Note: Excellent cathodic disbondment resistance; avoid long‑term direct UV sunlight exposure.
Value‑added Service: Custom cut‑to‑length, pipe end beveling.
Export & Supply: Steel‑strapped bundling with waterproof wrapping; direct factory supply for oil‑gas, municipal and crossing projects.
FBE Coated Carbon Steel Pipe for Buried & Directional Drilling Pipelines
Tianjin Youcheng Technology Co., Ltd. supplies carbon steel pipe with fusion bonded epoxy coating. Buried pipelines are one use. Submerged service and directional drilling take the same product. Base pipe grades for FBE Coated Carbon Steel Pipe are Q235B, Q355B, L245, L290, and L360. Outer diameters go from 89 mm to 2020 mm. Wall thickness goes from 4.0 mm to 20 mm. Two coating systems are available. Single-layer FBE is 300 to 500 μm thick and fits ordinary buried service. Dual-layer FBE-ARO runs 700 to 1200 μm and is built for HDD rock crossings. Production follows SY/T 0315, which equals ISO 21809-2. About 20000 tons sit in stock.
What Is FBE Coating?
FBE is short for Fusion Bonded Epoxy. It is a thermosetting powder. The steel gets preheated to between 180 °C and 250 °C. Then an electrostatic gun sprays the powder on. At that heat the epoxy resin melts and flows. A chemical reaction cross-links it. What stays behind is a hard, continuous barrier with no pores. It bonds right to the steel surface.
Bitumen and coal tar coatings come off more easily when cathodic protection is running. FBE resists that better. Soil conditions that change a lot also affect it less. A wide pH range causes it no trouble. Standard cathodic protection systems work with it. That is why buried pipelines in international projects reach for it first. Lines carrying oil, gas and water all use it.
Product Specifications
| Parameter | Details |
|---|---|
| Base Pipe Grade | Q235B, Q355B, L245, L290, L360 |
| Manufacturing Type | Seamless, ERW, LSAW, SSAW |
| Outer Diameter | 89 mm – 2020 mm |
| Wall Thickness | 4.0 mm – 20 mm |
| Pipe Length | Random or custom fixed cut length |
| Pipe End | Plain end / Beveled end |
| Single-Layer FBE Thickness | 300–500 μm |
| Dual-Layer FBE-ARO Thickness | 700–1200 μm |
| Applicable Standard | SY/T 0315 / ISO 21809-2 |
| Documentation | MTC per EN 10204-3.1; third-party inspection available |
Coating Options & Technical Properties
Single-Layer FBE (300–500 μm)
Most buried gas and water lines use this one. In ordinary soil it fights corrosion well. Cathodic protection systems also work with it, with no problems.
Dual-Layer FBE-ARO (700–1200 μm)
The abrasion-resistant overcoat (ARO) is a second, tougher layer laid over the base FBE. It was made for horizontal directional drilling (HDD) and rock-backfill crossings. On those jobs, tools can gouge the pipe while it goes in, and that risk is real.
Key Technical Properties
- Adhesion strength, tested to ASTM D4541: above 12 MPa (1700 psi)
- Because of its glass transition temperature, it can be used from −30 °C to 110 °C
- Its high electrical resistivity makes it compatible with cathodic protection
- Soil stress won't harm it, and acids, alkalis, or hydrocarbons won't either
- Bare-steel cutback at pipe ends for field welding
Manufacturing Process
The coating process runs in a set order. That order has a direct effect on how well the coating holds up over time.
- Surface Blasting: the steel surface is blasted to Near-White Metal (ISO 8501-1 Sa 2.5). The anchor profile measures 50–100 μm
- Preheating: before the coating goes on, the pipe is heated to 180 °C–250 °C
- Electrostatic Powder Spraying: FBE powder gets sprayed over the pipe surface in an even coat
- Thermal Curing: Heat makes the epoxy melt. It flows, then cross-links into a solid film with no pores
Every batch can be traced, from the base pipe right up to the finished coating. Full documentation comes with each order.
Quality Control & Testing
The following tests are performed as standard on every production batch:
- Spark Holiday Detection: high-voltage testing at 5 V/μm to locate pinholes or coating voids
- Coating Thickness Check: makes sure the build falls inside the required range, either 300–500 μm or 700–1200 μm
- Cross-Hatch Adhesion Test: this one shows how well the epoxy layer sticks to the steel substrate
- DSC (Differential Scanning Calorimetry): used to confirm the thermoset reaction has finished
- Impact Resistance Test: per ASTM G14, validates coating performance under handling and installation loads
Mill Test Certificates follow EN 10204-3.1 format. Third-party inspection is available at extra cost upon request.
Application Scenarios for FBE Coated Carbon Steel Pipe
FBE Coated Carbon Steel Pipe is used wherever buried or submerged pipelines are exposed to corrosion risk. The following are typical B2B applications.
Oil & Gas Midstream Transmission
Pipelines that run cross-country meet soil with different chemical make-ups. HDD installation adds mechanical stress on top of that. One coating structure does both jobs here: the dual-layer FBE-ARO system takes care of corrosion and abrasion together.
Municipal Water & Sewage Systems
Inside water mains, the smooth epoxy surface cuts friction loss. It also stops deposits from building up on the inside. Drinking water lines can use this coating. Even so, buyers should check the local regulatory requirements that apply to their own project.
Marine & Offshore Engineering
Offshore piling and subsea intake systems often sit in chloride-rich conditions. In those places the FBE barrier gives lasting protection against pitting corrosion. High-salinity splash zones are covered as well.
About Tianjin Youcheng Technology
Steel distribution and international export of FBE Coated Carbon Steel Pipe have kept Tianjin Youcheng Technology busy for 12 years. Shipments have gone out to Kuwait, Russia, Brazil, Belgium, Mexico, Kenya, and other markets. Around 200 tons sit in stock at the moment. That stock supports a normal production and dispatch lead time of 7–10 days. Buyers can request cut-to-length pieces. Beveled ends are an option too, and so are non-standard grades. Each order comes with paperwork: an MTC per EN 10204-3.1 and a Certificate of Compliance. For export, material is bundled with steel straps and wrapped to keep water out.

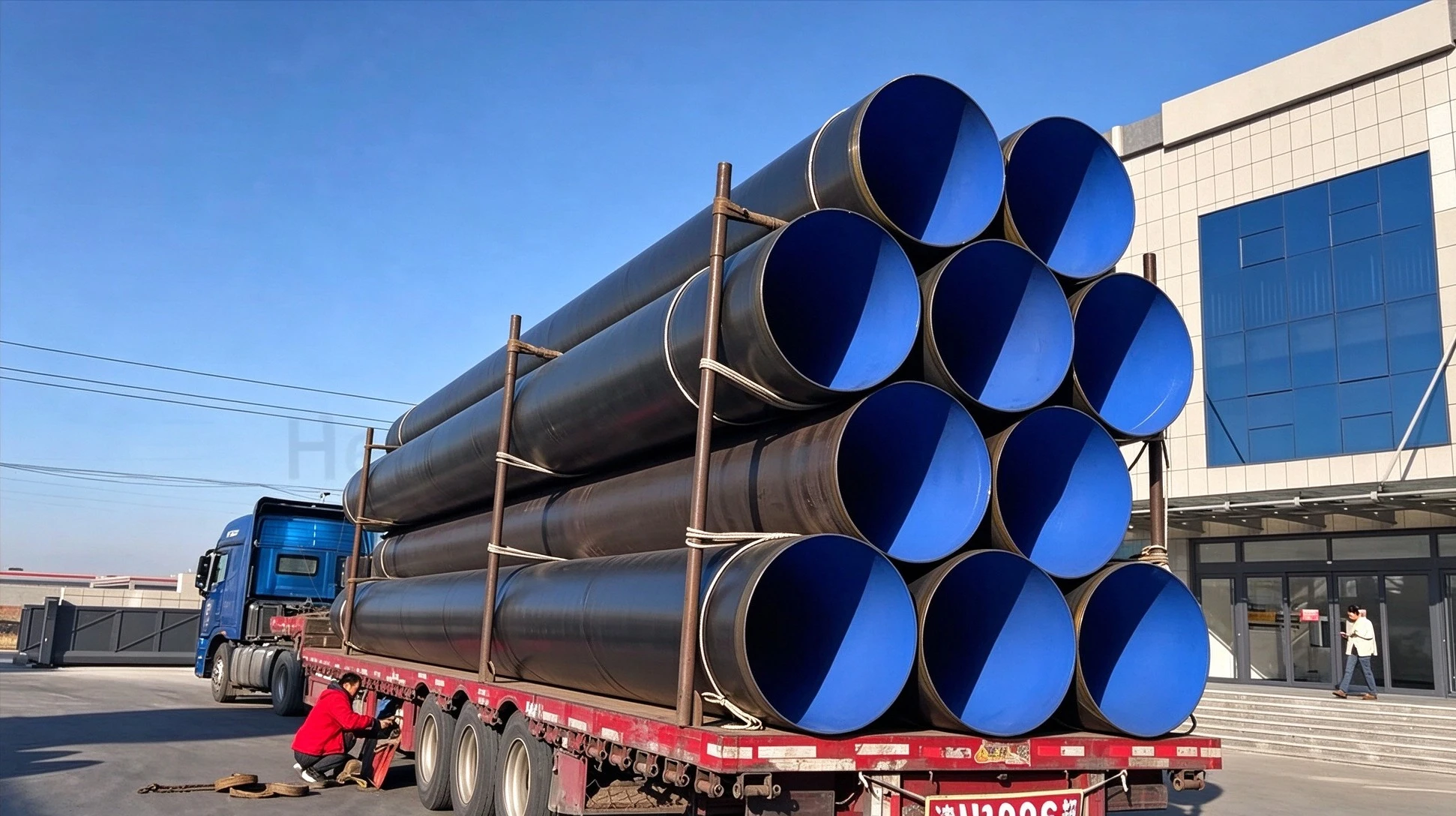

Packaging & Delivery
Global Clients Visit Our Steel Supplier Factory
FAQ
Q: What base pipe grades are available?
A: The grades on offer are Q235B, Q355B, L245, L290, and L360. If your project calls for a different grade, reach out so we can go over what is available.
Q: Can FBE coating be applied to the pipe interior?
A: Yes. Internal FBE (IFBE) is an option for applications where internal corrosion or friction reduction is a priority, such as gas and water transmission lines.
Q: How is coating damage repaired during or after transport?
A: Minor holidays or mechanical damage are repaired using two-part liquid epoxy repair kits that bond chemically with the existing FBE coating, following standard field repair procedures.
Q: Is FBE coating UV resistant?
A: FBE can break down from UV exposure when it sits in direct sunlight for a long time. Planning to store it outdoors for months? Then a UV-resistant topcoat or a whitewash cover is advised.
Q: How does single-layer FBE differ from dual-layer FBE?
A: Single-layer FBE (300–500 μm) provides standard corrosion protection for buried service. Dual-layer FBE-ARO (700–1200 μm) adds an abrasion-resistant overcoat suited to rocky terrain and HDD crossings where mechanical damage is a concern.
Q: Which documents come with an order?
A: Every order ships with a Mill Test Certificate in EN 10204-3.1 format. A Certificate of Compliance is included as well. Third-party inspection can be set up, but it costs extra.
