Plastic Coated Steel Pipe for Fire Protection & Water Supply

Tianjin Youcheng Technology supplies composite pipe built on a Q235B or A53 Gr.B ERW steel base, with internal epoxy (EP) coating and an external PE or EP layer. With 12 years in steel distribution, approximately 20000 tons in stock, and a standard production lead time of 7–10 days, Youcheng serves fire protection, municipal water supply, and industrial piping projects in Kuwait, Russia, Brazil, Kenya, and more than ten other markets. Our Plastic Coated Steel Pipe conforms to CJ/T 120 and GB/T 28897 standards.

What Is This Product?

This product is built from an ERW steel pipe. On top of that, a polymer coating is applied to the inside and the outside. That coating can be polyethylene (PE) or epoxy resin (EP). How does it get applied? By thermal dipping or by electrostatic spraying.

The steel core carries the mechanical loads and the working pressure. The plastic layers have a different job. They shield the pipe from chemical attack and electrochemical corrosion. Fluid contamination is kept out as well. Uncoated metal pipe tends to scale up inside, and that creates a lot of fluid friction. Both problems get smaller once the bore surface is smooth epoxy.

Product Specifications

Key Performance Characteristics

Inside the pipe, the epoxy coating holds off acids, alkalis, and salts. Its bore surface is smooth, and the friction coefficient can drop as low as 0.0081. Less energy is then needed for pumping. Scaling buildup over time stays limited too.

Outside, a PE or EP layer sits between the steel and the electrolytes found in soil. Once the pipe goes into a buried or underground setup, electrochemical corrosion becomes less likely. Acidic ground is the case where that outer layer counts the most. It acts as a physical wall that stops pitting corrosion. Plain galvanized pipe cannot do that.

Under CJ/T 120, coating adhesion has to reach ≥ 30 N/10 mm. This pipe hits that number. As a result, the bond between polymer and steel tends to hold when thermal expansion and mechanical stress show up during normal installation and operation.

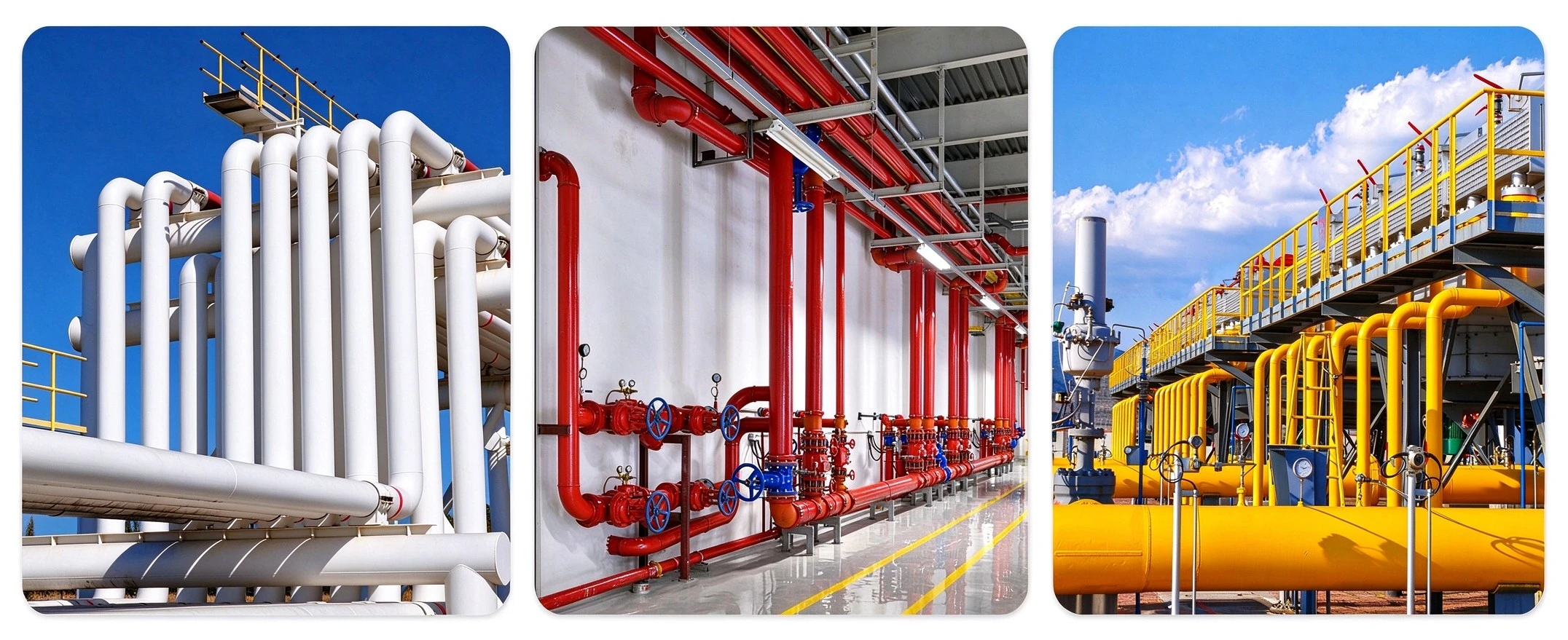

Application Scenarios

Fire Protection Sprinkler Systems

Red EP-coated pipe turns up often in sprinkler systems. Inside the pipe's rated operating range, the epoxy coating stands up to heat. A smooth interior helps too. It keeps rust from building up and blocking the water flow.

Municipal and Building Water Supply

PE-coated pipe suits potable water distribution lines well. The coating passes the non-toxicity rules that cover it. On the inside, the bore stays smooth. That holds down the conditions biofilm likes to gather in.

Drainage and Cable Conduit

Chemical exposure shows up in drainage work, and it shifts from one site to the next. The composite structure can take it. Cable protection is a second job it handles. In that case, the plastic layer on the outside keeps the electrical side isolated. Once the line runs underground, it also fights off corrosion from the soil.

Industrial and Plastic Coated Steel Pipe Corrosive Environments

At coastal sites, saltwater is everywhere. Chemical plants sit on harsh soil too. Neither one bothers a steel pipe with a plastic coating. Bare steel or galvanized pipe gives out much sooner.

Connection Methods

Four connection options are available depending on project requirements:

• Grooved (Victaulic) couplings: fast installation without heat; no coating damage at the joint
• Threaded joints: you can use these on smaller diameters (DN15–DN100)
• Flanged connections: these are fitted at valves and pumps, and at points where equipment connects
• Welded: this method works on pipe that carries an EP coating. After welding, though, the coating needs repair, so the joint still keeps its corrosion protection

Grooved-end pipe is the top pick for fire protection and water supply systems. You can put the pieces together, or take them apart, and the coating stays intact.

Quality Control Process for Plastic Coated Steel Pipe

Every pipe is checked more than once before it ships.

Spark Test (Holiday Detection): A high voltage scan travels over the entire coated surface. It hunts for tiny pinholes. Any flaw that shows up gets repaired before the pipe leaves the plant.

Adhesion Test: How well does the polymer layer stick to the steel substrate? A cross-cut test or a peel test answers that. To pass, the bond must hit ≥ 30 N/10 mm.

Coating Thickness Measurement: Ultrasonic gauges measure how thick the coating is. On the inside of the pipe, the reading must be ≥ 0.3 mm. Outside, the number has to land between 0.3–1.0 mm. Crews take these readings along the full pipe length.

Impact Resistance Test: Drop a calibrated weight from a set height. A good coating will not crack. That tells you it can handle the loads that normal handling and installation place on it.

Dimensional Check: We measure the outer diameter and the wall thickness. End processing gets looked at too. Every value is compared with what the order asks for and with the standards that apply.

Packaging and Delivery

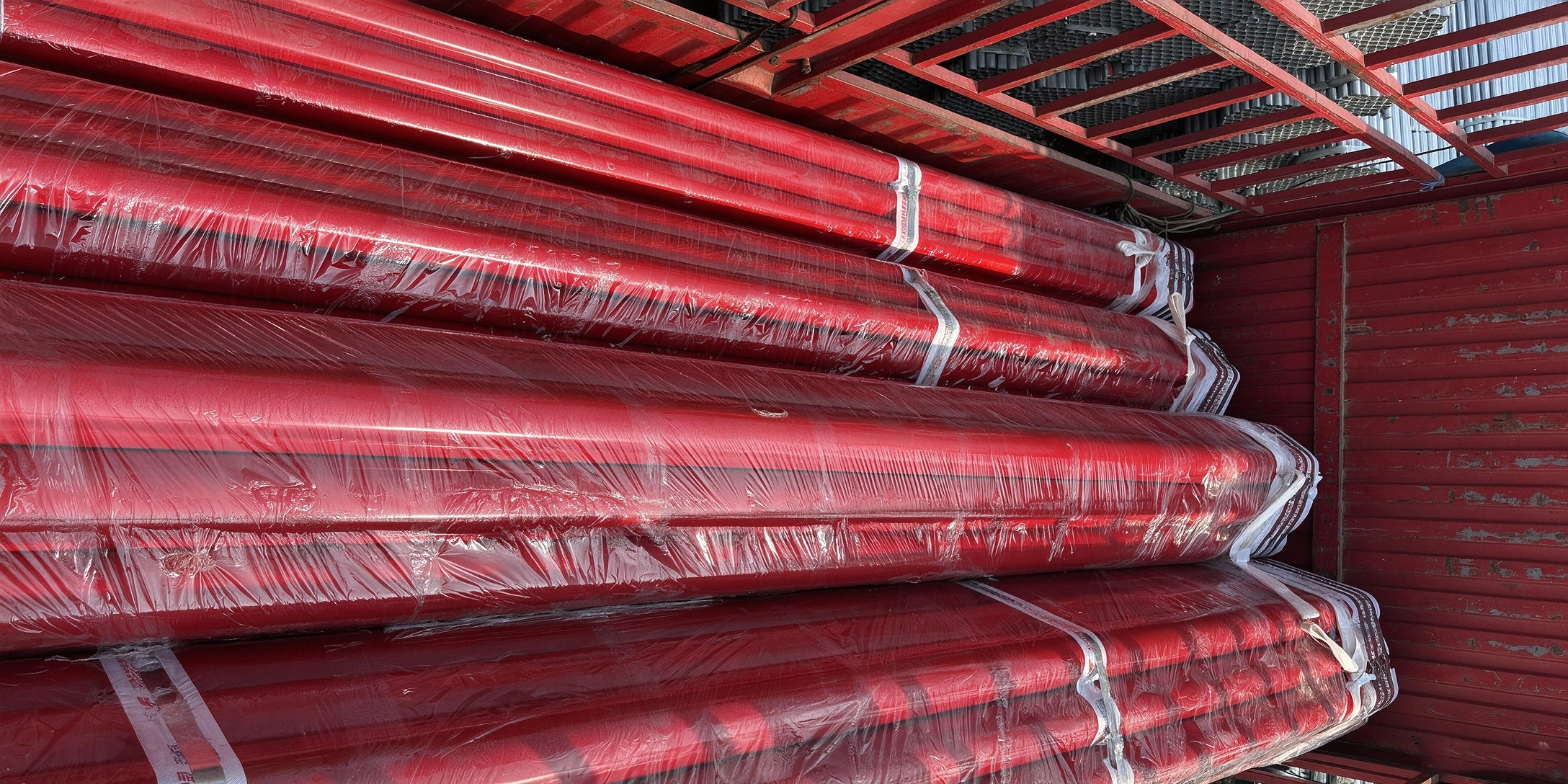

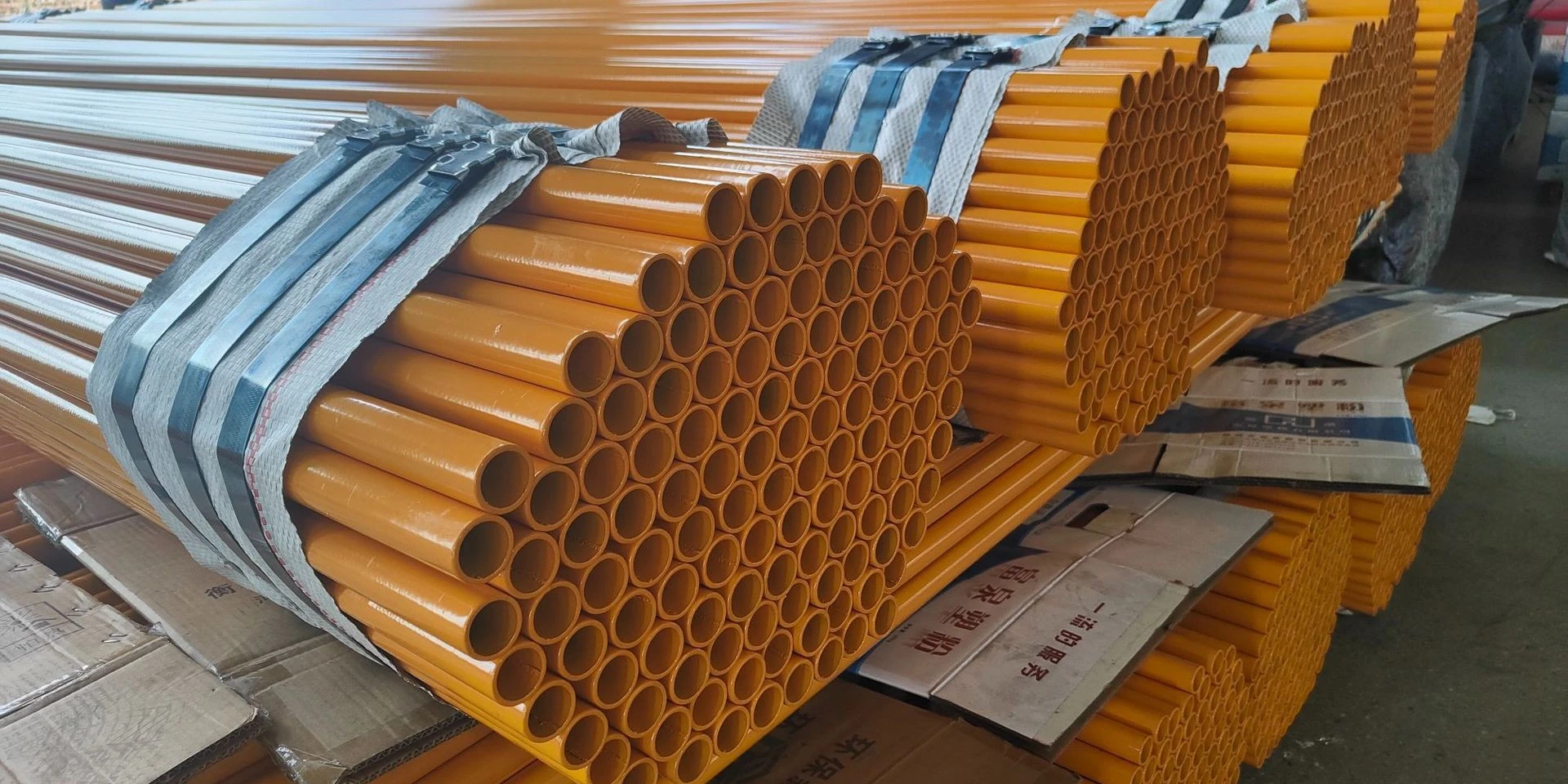

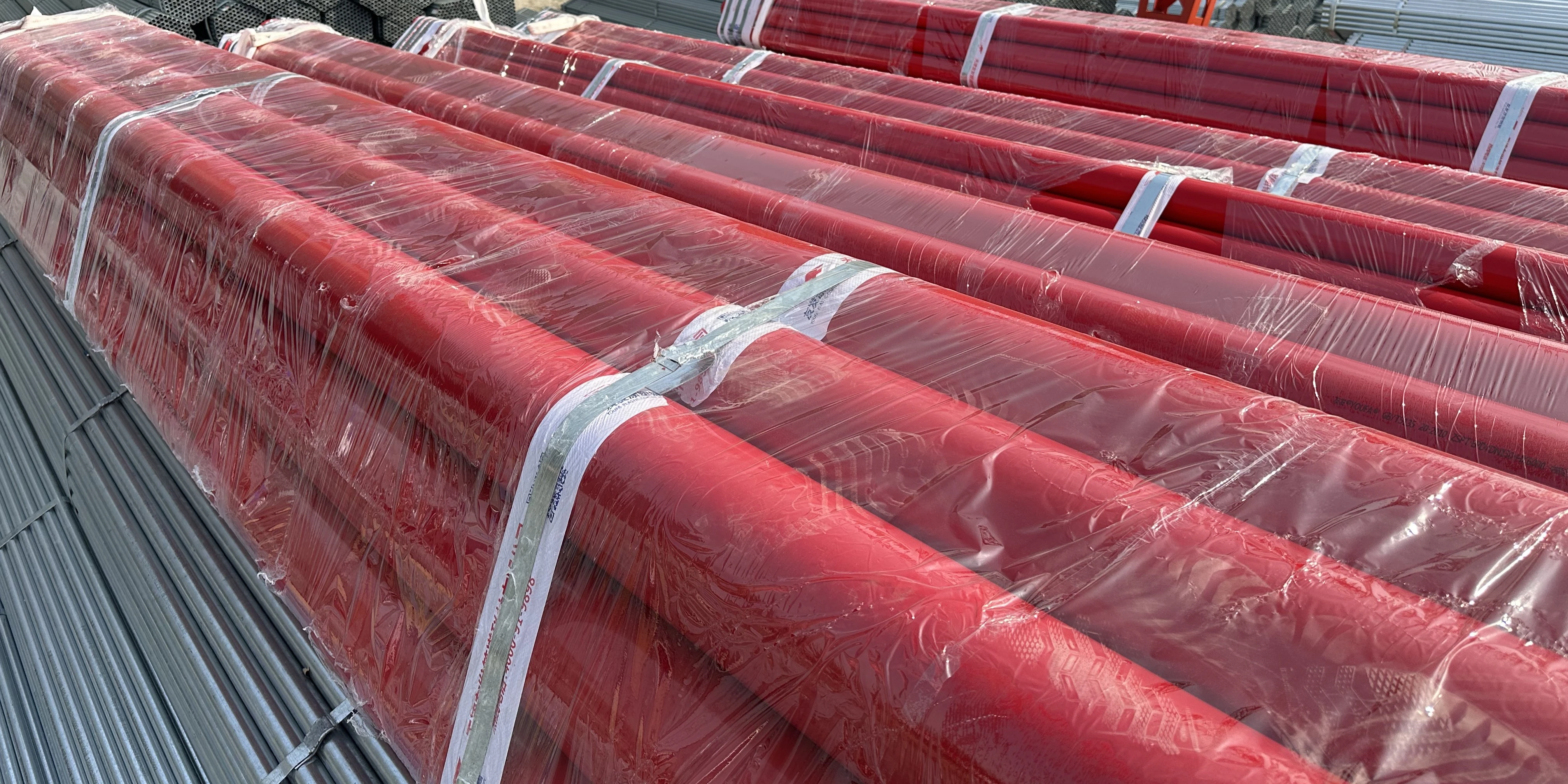

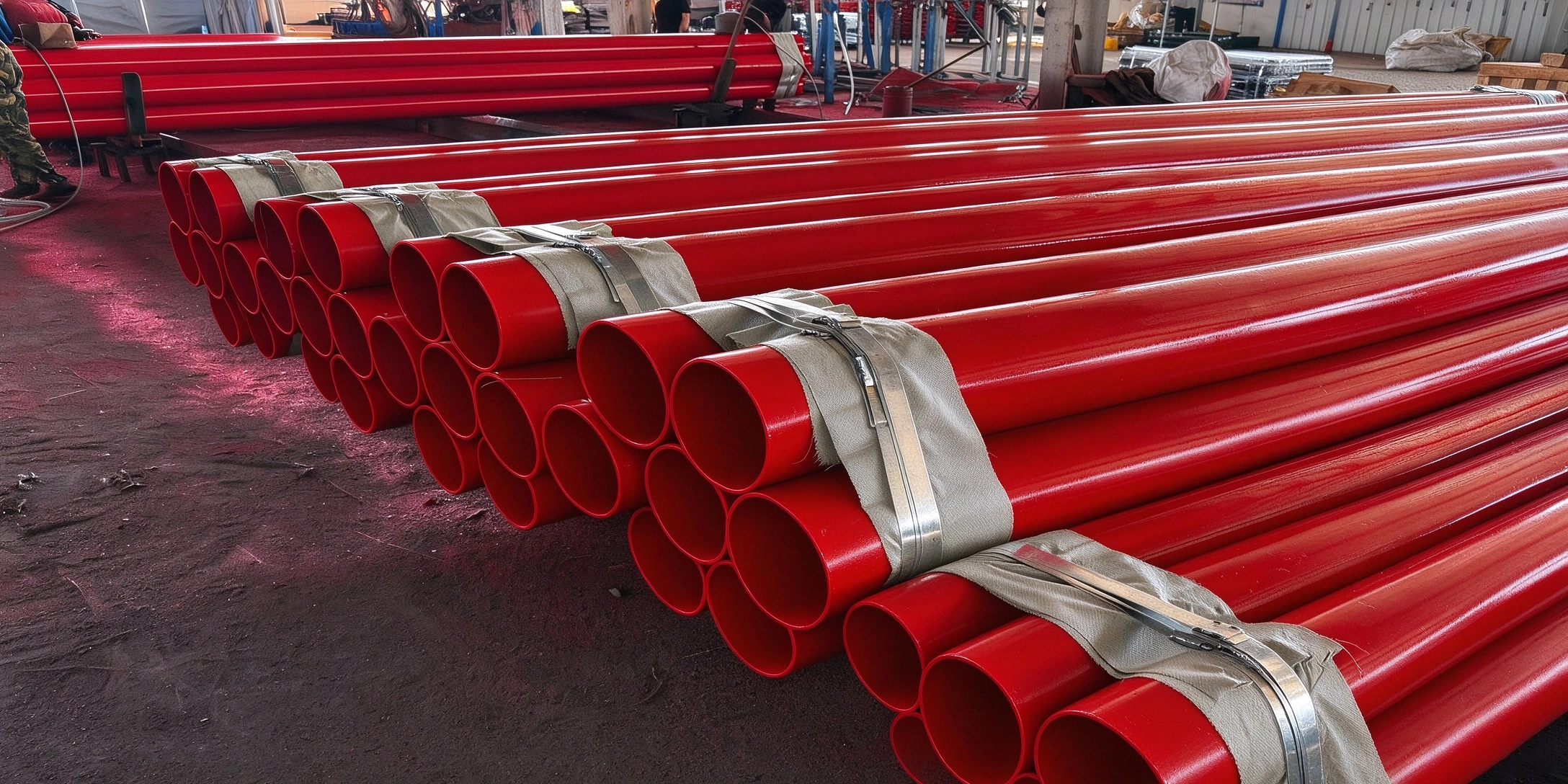

Pipes go into hexagonal packs. End caps are fitted so the coating holds up in transit and in storage. That way there is less edge damage before the pipes reach the site.

Roughly 200 tons of Plastic Coated Steel Pipe sits in stock. We also have freight forwarding partners we have worked with for years. So a standard order is usually ready to ship in 7–10 days. Custom lengths can be produced. The same goes for colors and end processing. On non-standard items, the lead time is confirmed when the order is placed.

Global Clients Visit Our Steel Supplier Factory

FAQ

Q: What is the biggest difference between PE and EP coatings?

A: PE stands for polyethylene. It is a thermoplastic, so it bends with little effort. Moisture cannot pass through it. Underground water supply lines are a good use for it. Epoxy, also called EP, is a thermosetting resin instead. This one is harder. Heat does not bother it as much either. Gas lines and fire protection systems often need it.

Q: How is this pipe connected on site?

A: Groove couplings are one of the most common ways. Flanged joints and threaded connections are common too. EP-coated pipe can be welded. The weld area then needs coating repair. That repair keeps the joint protected from corrosion.

Q: Will it hold up underground in acidic soil?

A: Yes. The steel sits behind an outer plastic layer, so soil electrolytes can't reach it. That cuts down the electrochemical reactions. Pitting in uncoated or galvanized pipe is caused by those same reactions.

Q: What service life is this pipe designed for?

A: A pipe that is installed right and run under standard conditions is built to serve for many years. CJ/T 120 and GB/T 28897 are both met. Real service life comes down to the operating environment, the installation quality, and maintenance practices.

Q: How well does it handle freezing temperatures?

A: Anything from −30 °C to 90 °C is fine to work in. When it gets cold, the composite structure keeps the same impact strength. Freezing makes the fluid expand, though, so take the normal precautions and it will not get damaged.

Q: Can I get custom sizes? And what about colors and end processing?

A: Yes, that is no problem. Length is up to you. We cut whatever you need. Colors that fall outside our standard list are fine as well. For the ends, choose plain, threaded, grooved, or flanged. Nothing goes into production until the specs are confirmed.
