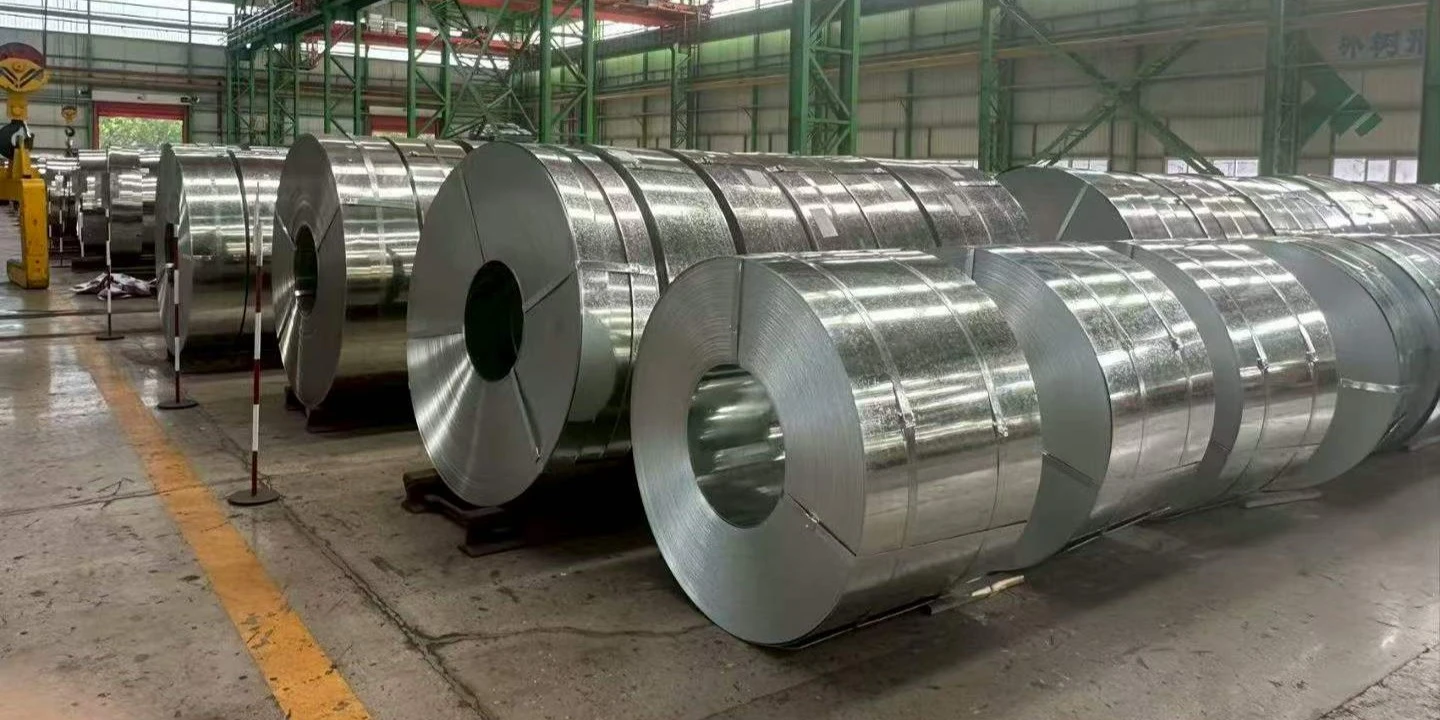

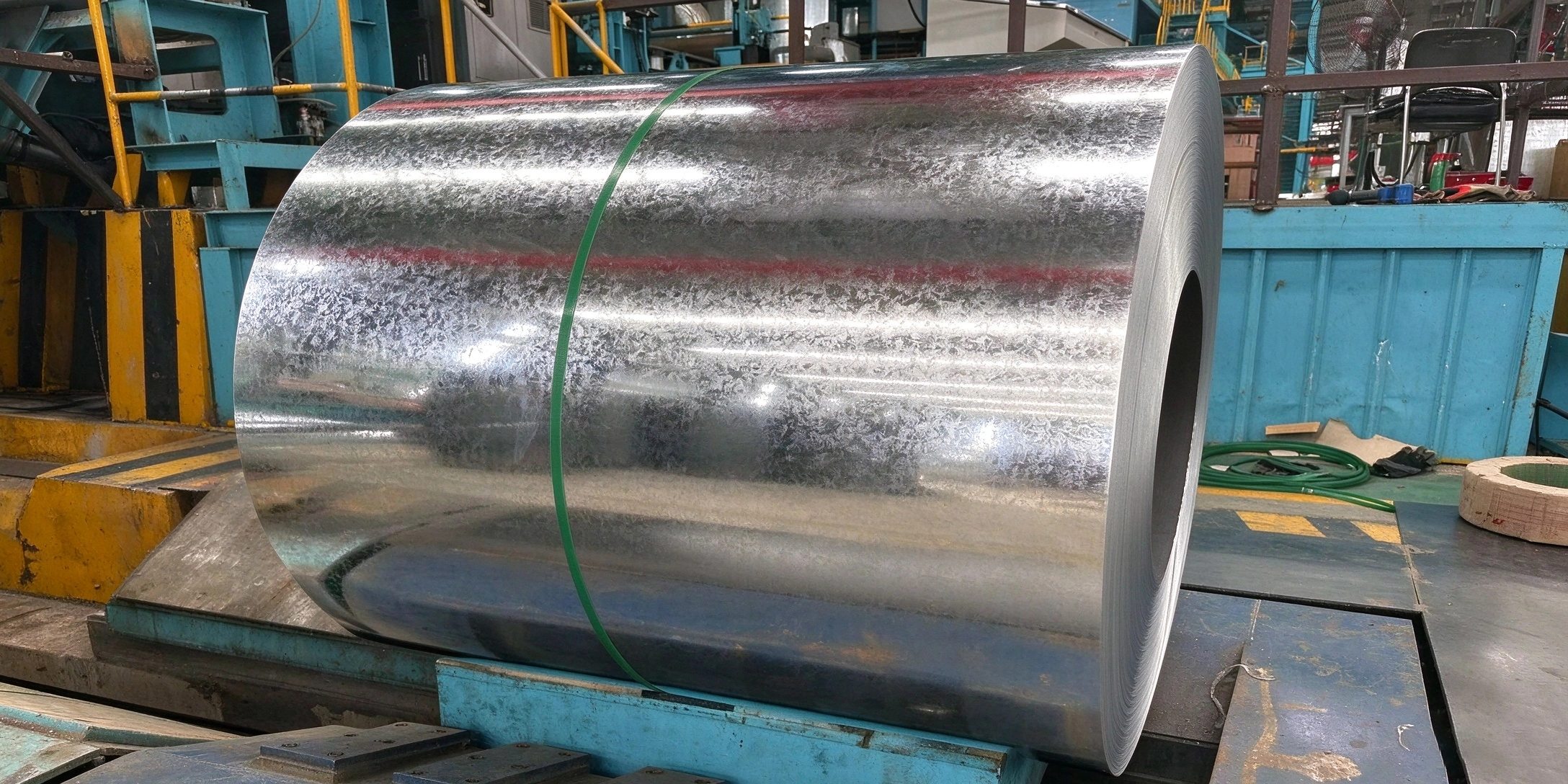

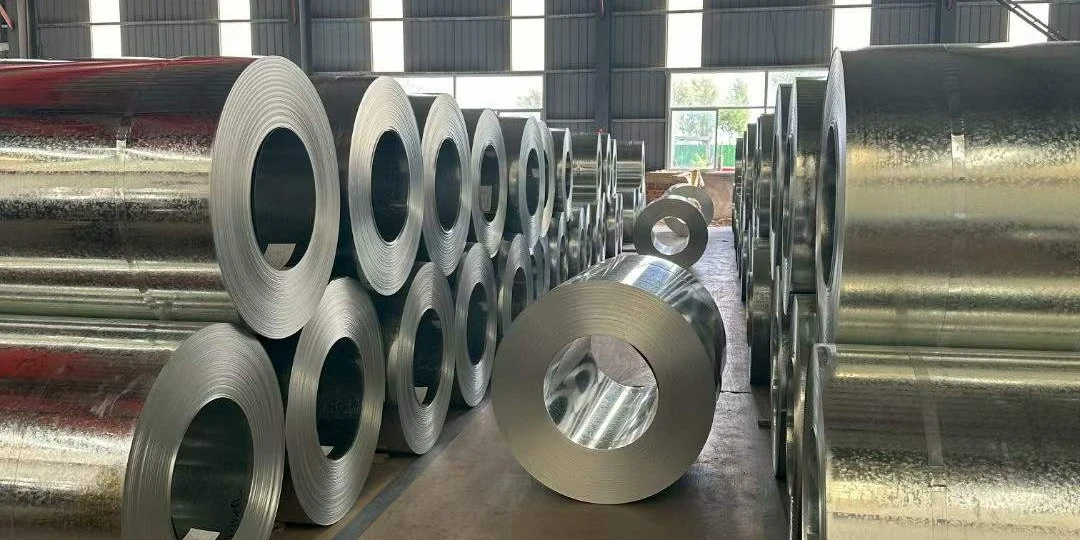

Hot-dip Galvanized Coil (GI) for Construction & Industrial Use — Factory-Direct Supply

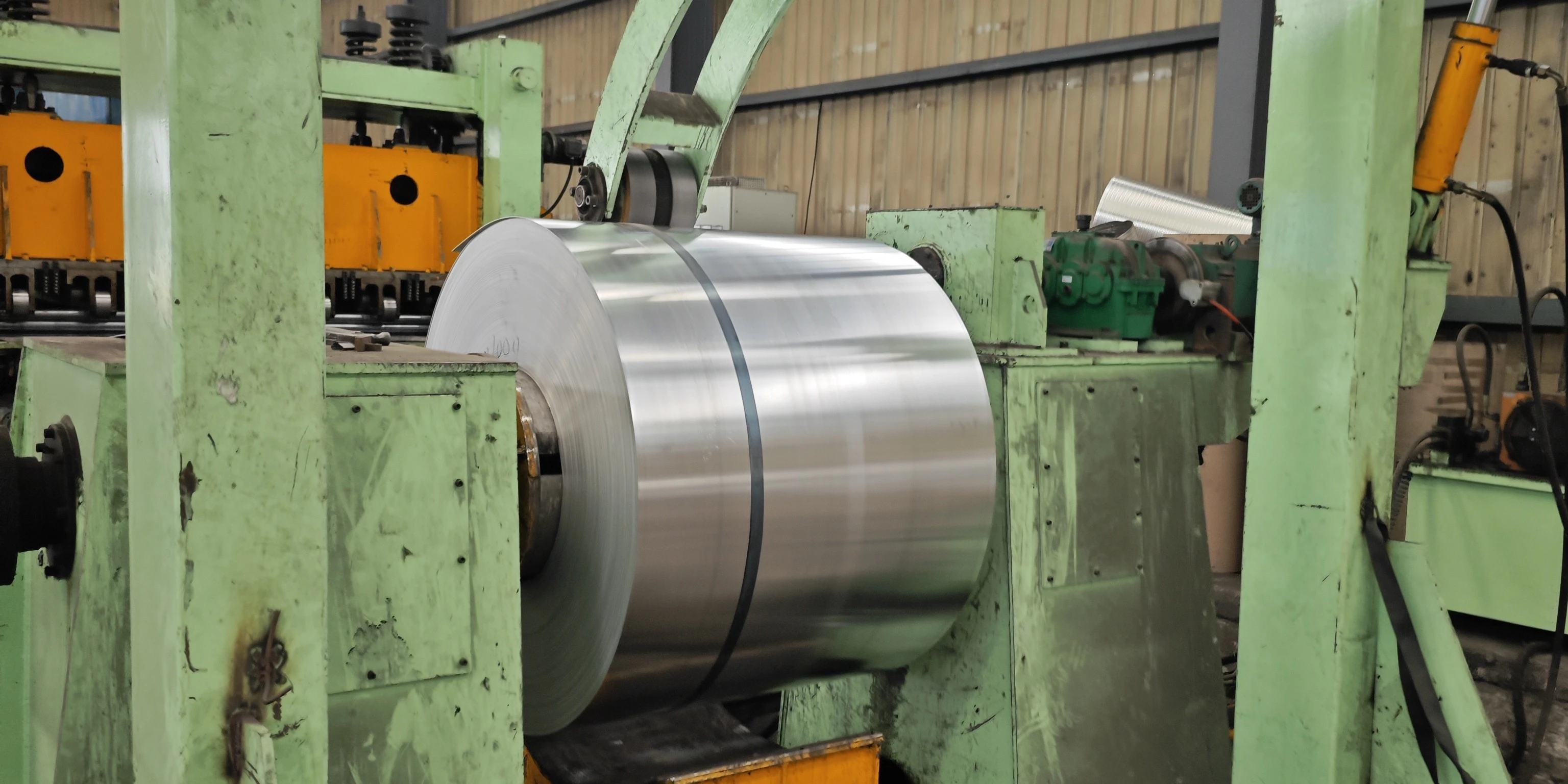

Galvanized steel coil is what Tianjin Youcheng Technology makes. Their line runs on a continuous hot-dip process. Cold-rolled strip gets pulled through a bath of molten zinc. That bath stays at roughly 450°C. Zinc and steel then bond into a metallurgical alloy. So the coating does not just sit on top of the surface. Scratch it, or cut through the material, and the corrosion protection still holds. DX51D, SGHC, and SGCC are among the grades available. Thickness goes from 0.1 mm up to 3.0 mm. GB/T 2518 is one standard it meets. EN10142 and ASTM A653 are met as well. Around 20000 tons of Hot-dip Galvanized Coil (GI) sit in stock. Production lead time is 7 to 10 days.

What Is Hot-dip Galvanized Steel Coil?

Cold-rolled strip goes through a bath of molten zinc and never stops moving. That bath sits at about 450°C. What forms is a layer of zinc-iron alloy. It bonds right onto the steel underneath. So nothing here is a surface coating, and it will not peel or flake off by itself.

The zinc layer works as a sacrificial shield. It corrodes first, and the steel below stays protected because of it. Scratch the surface, or cut the edges, and that still holds true. In rural areas where pollution is low, and under C1 to C2 corrosivity conditions (ISO 9223), service life can go past 50 years with no extra paint.

How a material is put together is what gives it its protection. This productworks on that same idea, and that is why it gets used so much as a structural material that stands up to rust. It turns up in construction and HVAC jobs. Industrial settings use it too.

Product Specifications

Surface Options: Regular Spangle vs. Zero Spangle

Two surface finishes are on offer. Which one fits depends on what the finished part has to do.

With Regular spangle, the zinc forms a crystal pattern you can see on the surface. Roofing sheets and wall panels are typical uses. General structural parts fit too, since looks matter less there than how the thing holds up.

Zero spangle comes from lead-free zinc baths or from rapid cooling. The surface ends up smooth and even. Pre-painted steel (PPGI) is where this finish gets used the most. It also fits any job that needs a steady base for painted coatings. Spangle is only a visual sign of how zinc crystallizes. It does nothing to corrosion resistance. At the same coating weight, zero spangle and regular spangle protect the steel just as well.

Product Features

• Two surface options: regular spangle and zero spangle, suitable for different downstream processes
• Wide thickness range: thin gauge starts at 0.1 mm and runs to 3.0 mm medium thickness, all from one product line
• Flexible processing: slitting and leveling are both available. Cut-to-length work and longitudinal shear can be done as well
• Customizable zinc coating: from Z60 to Z600 g/m² to match corrosion environment category (C1–C5)
• Good formability: the zinc-iron alloy layer supports deep drawing and roll forming without visible delamination under standard fabrication conditions
• Pre-shipment inspection: each batch gets checked for zinc coating weight, its dimensions, and how the surface looks
• Mill Test Certificate (MTC) ships out with each order you send us

Application Scenarios

A lot of industries buy hot-dip galvanized coil. When they want protection from corrosion and a structure that stays firm, this is what they go with.

Construction and infrastructure: Downstream buyers turn it into roofing sheets and wall cladding. C/Z purlins get made from it too, and so do duct frames. Such parts serve in C3 and C4 corrosive settings. Coastal zones are one case. Humid areas and industrial sites are others.

HVAC and utilities: Commercial buildings almost always need ventilation ducting and cable trays. For that kind of work, galvanized coil, Hot-dip Galvanized Coil (GI), is a natural fit. Rust cannot get through it. The shape holds too, even when air runs nonstop and temperatures swing.

Automotive and appliances: Internal structural reinforcements in cars are often made from galvanized coil. The same metal shows up in appliance panels. Think of the side panels on a refrigerator. There it works as a rust-resistant base. Humidity comes cycle after cycle, and it keeps going.

Export projects: Seaworthy packing for export comes with every order. Tianjin Youcheng Technology sends goods to markets that include Kuwait, Russia, Ukraine, Greece, Belgium, Brazil, Mexico, and Kenya.

Quality Control Process

Every coil goes through a set inspection routine before it leaves the plant.

The Coating Mass Test (Triple Spot Test) confirms the coating matches the Z-designation listed on the order. Steel gets bent the same way a fabricator would bend it. After that, the 180-degree Bend Test proves the zinc layer stays in place, with no cracking and no flaking.

Surface checks pick up defects. Dross inclusions, uncoated spots, white rust, all of them get caught. To show how the passivation layer handles corrosive conditions, a Salt Spray Test (ASTM B117) is run.

Gauges do their job, and production never stops. On the continuous galvanizing line, X-ray fluorescence (XRF) thickness gauges read the coating. Those readings also tell you how evenly the coating holds across the full width of the coil.

With each order you get a Mill Test Certificate (MTC).

Packaging & Logistics for Hot-dip Galvanized Coil (GI)

Each coil goes out in export seaworthy packaging. That packaging is made for ocean freight. Moisture stays out this way. The coil is also protected against mechanical damage.

Freight forwarding partners handle shipping for Tianjin Youcheng Technology. Through them, Hot-dip Galvanized Coil (GI) goods go to Kuwait, Russia, Ukraine, Greece, Belgium, Brazil, Mexico, and Kenya, plus other markets. Roughly 200 tons is kept in stock. Production takes 7–10 days.

FAQ

Q: How do the Z275 and Z180 coating designations differ from one another?

A: A Z275 sheet carries 275 g/m² of zinc across both sides. The coating on Z180 is lighter than that. More zinc means corrosion gets fought off better. Rough outdoor weather is no problem for Z275, and the same goes for industrial conditions.

Q: What stops white rust from forming on galvanized coil?

A: Zinc hydroxide is what white rust really is. Moisture trapped on the surface is what makes it appear. Chromate passivation stops it, and so does oiling during production. Coils also stay safer in dry storage with good airflow.

Q: Can galvanized steel coil be welded?

A: Yes. Strip the zinc coating back around the weld zone. Consumables designed for this task work too. Zinc fumes need plenty of moving air, so ventilate as you weld.

Q: When steel carries a zero spangle finish, does that change how well it holds up against rust?

A: No. Spangle is a result of how zinc crystallizes. It is visual only. Corrosion protection stays the same. Pre-painting jobs often pick zero spangle, because the base surface turns out smoother.

Q: How many years can a galvanized steel coil normally serve?

A: The service life of the coating hinges on two factors. One is coating weight. The other is the corrosivity category of the environment (C1–C5 per ISO 9223). For low-pollution settings, C1–C2, things are easy. There, the coating can last more than 50 years with no extra surface treatment. C4–C5 tells a different story. At industrial and coastal sites, extra protective measures are usually needed on top of the coating.

Q: What kind of processing can be done before the goods are shipped?

A: Leveling is one service we can arrange. Slitting, cut-to-length work, and longitudinal shear are others. We make slitting widths to order. They fit your project, or whatever your downstream production line needs.
