316 Pipe for Marine, Chemical & Food-Grade Applications — Molybdenum-Grade Stainless Steel Piping Solution

Some corrosive jobs are too much for 304-grade. That is where 316 Pipe comes in. It is an austenitic stainless steel pipe that holds molybdenum. Chromium makes up 16–18% of the alloy. Nickel falls between 10% and 14%. At 2% to 3%, molybdenum is the last piece. This blend gives a minimum tensile strength of 515 MPa. Yield strength is 205 MPa. Outer diameters start at 6 mm and go up to 630 mm. Wall thickness runs from 1 mm to 50 mm. Marine work is one use. Chemical plants also rely on it. Pharmaceutical and food-grade applications use it as well.

What Makes This Product Different from Standard Stainless Steel Pipe

The main gap comes down to molybdenum. There is none in 304-grade pipe. That leaves it open to pitting and crevice corrosion caused by chlorides.

With molybdenum added, this product gets a Pitting Resistance Equivalent Number (PREN) of about 23–26. Seawater then becomes a much better match. The same goes for brackish water and saline settings. Acidic chemical transport also works.

Structural toughness holds at cryogenic temperatures too. Oxidation resistance reaches 870°C for intermittent service. Continuous service raises that limit to 925°C.

Material Composition & Mechanical Properties

Full Product Specifications

Key Performance Advantages

Chloride Corrosion Resistance

Molybdenum gives the 316 Pipe its strong resistance to seawater and coastal corrosion. Mild acid and saline conditions leave the metal stable. Weaker alloys break down under the same exposure.

High-Temperature & Cryogenic Stability

Mechanical performance holds steady from sub-zero temperatures all the way to 925°C in continuous service. Plenty of industrial process environments fall inside that range.

Weldability & Fabrication

This alloy gives reliable welds. Finishes such as 2B and BA help with welding. They also make bending and fitting easier in fabrication environments.

Surface Finish Flexibility

Five surface treatments are available: 2B, BA, No.1, Polished, and Mirror Polish. Hygiene is behind some of those picks. Others get chosen for looks or for corrosion resistance.

Quality Inspection Standards

Every batch is checked at several stages before it ships. A Mill Test Certificate (MTC) comes with any order, if you ask for one.

Key inspection items include:

• PMI (Positive Material Identification): It shows what the metal is actually made of. The exact chemistry gets read, and the molybdenum level counts most
• Hydrostatic Testing: Pressure is put on the part. If it holds, the structure is sound
• IGC Testing: This check follows ASTM A262 Practice A or E. Welding can leave sensitization behind. The test spots it
• NDT (Non-Destructive Testing): Flaws on the surface and below it turn up with eddy current or ultrasonic testing
• Dimensional Inspection: Here the wall thickness and the diameter get measured against the tolerances in ASME B36.19

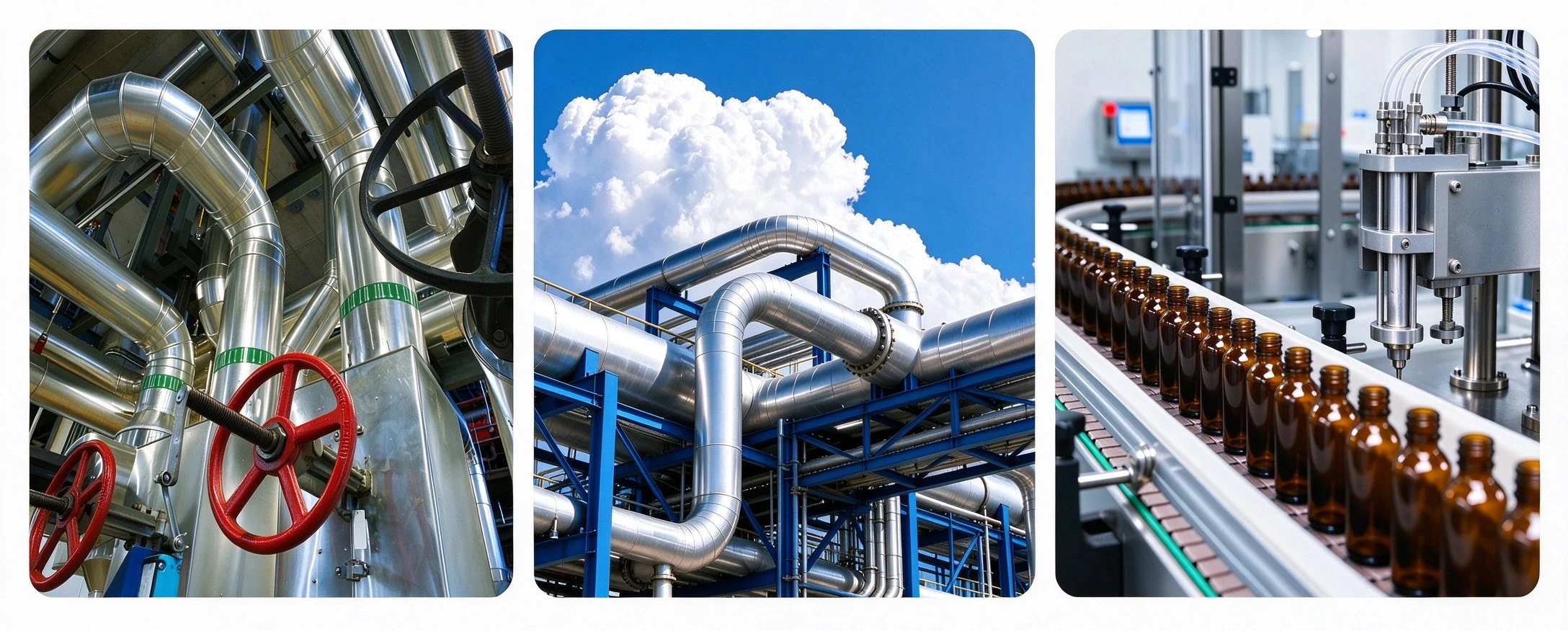

Where This Product Is Used

Marine & Offshore Engineering

Chloride attack never lets up inside a seawater cooling system. Desalination plants run into the same problem. Offshore oil platforms do too. Salt spray does nothing to this grade, and it holds up well under immersion.

Chemical & Petrochemical Processing

This pipe moves corrosive acids around. Acetic, formic, and phosphoric acid are the usual ones. They get pumped at high temperatures and in high concentrations. Molybdenum in the metal stops the inside wall from breaking down.

Pharmaceutical & Food Production

High-purity water systems need a surface that will not react. Hygienic processing lines need the same. This pipe takes harsh Clean-in-Place (CIP) sterilization cycles without trouble. Nothing can contaminate the surface.

316 Pipe Customization & Supply Options

Custom OD is one option. Wall thickness can also be made to your spec. Pipes come cut to a fixed length. Ends can be beveled or threaded. Special surface finishes are offered too. OEM and ODM services can be arranged to match project drawings or the standards of a specific market.

Production usually takes 7–10 days. Sizes we hold in stock can ship sooner. Mill Test Certificates come per batch, and you can ask for them.

Have drawings or project specs for 316 Pipe ready? Send them straight to our team. A quote will follow quickly.

FAQ

Q: What is the difference between this product and 316L Pipe?

A: The carbon content in 316L is lower. At most it sits at 0.03%. That keeps carbide precipitation from forming while you weld. So with heavy-gauge parts, the annealing step after the weld gets skipped. For welded fabrication in general, 316L is the grade most people go with.

Q: Is this product magnetic?

A: In its annealed state, it is non-magnetic. It may become slightly magnetic after cold working or welding due to microstructural changes.

Q: Why does my stainless steel pipe show surface rust?

A: This typically results from surface contamination — often from contact with carbon steel tools — or from exposure to chloride concentrations that exceed the alloy's PREN threshold.

Q: Can this pipe handle high-temperature service?

A: Yes. It offers oxidation resistance up to 870°C for intermittent service and 925°C for continuous service, provided the environment is not highly reducing.

Q: How does the PREN value affect corrosion performance?

A: PREN is calculated as Cr + 3.3Mo + 16N. A higher value indicates better pitting resistance. At approximately 23–26, this grade outperforms 304 in brackish water and chemical environments.

Q: What cutting and end-processing services are available?

A: Straight cutting, bevel end processing, threading, and fixed-length cutting are supported according to your drawings or project specifications.
